Hcfc-123 Fire Extinguisher
2,2-Dichloro-1,1,1-trifluoroethane or HCFC-123 is considered as an alternative to CFC-11 in low pressure refrigeration/HVAC systems, and should not be used in foam blowing processes or solvent applications.
Its ozone depletion potential is ODP = 0.012, and global warming potential is GWP = 76. HCFC-123 will eventually be phased out under the current schedule of the Montreal Protocol, but can continue to be used in new HVAC equipment until 2020 in developed countries, and will still be produced for service use of HVAC equipment until 2030. Developing countries can use in new equipment until 2030, and can be produced for use in service until 2040.
HCFC-123 is used in large tonnage centrifugal chiller applications, and is the most efficient refrigerant currently in use in the marketplace for HVAC applications. HCFC-123 is also used as a testing agent for bypass leakage of carbon adsorbers in gas filtration systems, and as the primary chemical in Halotron I fire-extinguishing agent.[2]
Storage tanks carrying HCFC-123 should be a light grey. Isomers are 1,2-dichloro-1,1,2-trifluoroethane (R-123a) with CAS 354-23-4 and 1,1-dichloro-1,2,2-trifluoroethane (R-123b) with CAS 812-04-4.

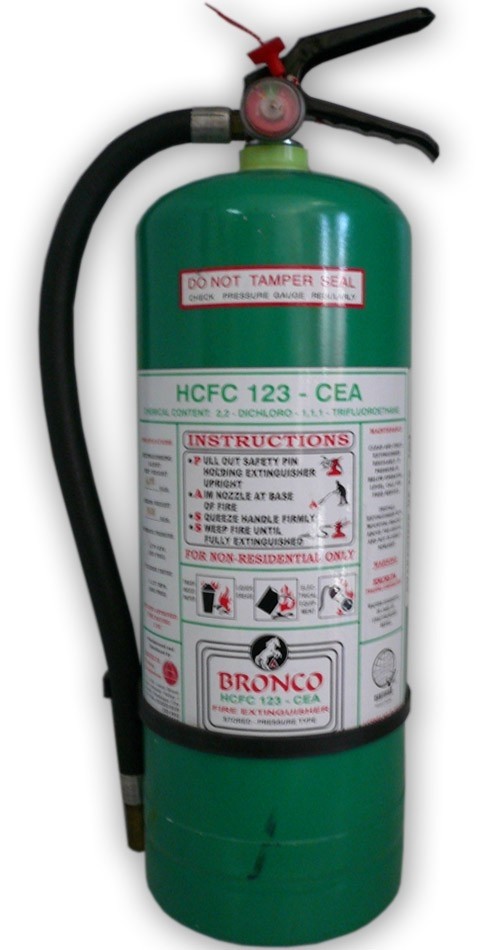

HCFC 123 is the raw base material use to produce a halogeanated, safe/effective and environment friendly fire extinguishing chemical agent called "halotron I". It was introduce in early 1990's to replace the "banned" fire extinguishing agents like, Halon 1211 and BCF's, which were found to have a severe ozone depleting potentials. In contrast, hcfc 123 base fire extinguishing agents has a near zero ozone depletion potentials.
Its ozone depletion potential is ODP = 0.012, and global warming potential is GWP = 76. HCFC-123 will eventually be phased out under the current schedule of the Montreal Protocol, but can continue to be used in new HVAC equipment until 2020 in developed countries, and will still be produced for service use of HVAC equipment until 2030. Developing countries can use in new equipment until 2030, and can be produced for use in service until 2040.
HCFC-123 is used in large tonnage centrifugal chiller applications, and is the most efficient refrigerant currently in use in the marketplace for HVAC applications. HCFC-123 is also used as a testing agent for bypass leakage of carbon adsorbers in gas filtration systems, and as the primary chemical in Halotron I fire-extinguishing agent.[2]
Storage tanks carrying HCFC-123 should be a light grey. Isomers are 1,2-dichloro-1,1,2-trifluoroethane (R-123a) with CAS 354-23-4 and 1,1-dichloro-1,2,2-trifluoroethane (R-123b) with CAS 812-04-4.
HCFC 123 is the raw base material use to produce a halogeanated, safe/effective and environment friendly fire extinguishing chemical agent called "halotron I". It was introduce in early 1990's to replace the "banned" fire extinguishing agents like, Halon 1211 and BCF's, which were found to have a severe ozone depleting potentials. In contrast, hcfc 123 base fire extinguishing agents has a near zero ozone depletion potentials.
